GOODS LIFT


ORDER PICKERS

Manual Electric Order Picker from ‘MHE SERVE ’ are widely used in warehouses where order picking from racking is necessary. It is available in semi battery operated lifting and lowering model. It is ideal for the operator for quick and easy retrieving of goods. Lifting and lowering is done simply at the push of a button from the remote pad inside the operator cabin. Moving the machine around is done by pushing it manually. This range of SOP - is also available in A.C. version, with flameproof electricals and with customisation as per applications requirements. This range of equipment from MHE SERVE are very useful across all segments of industries.

SPECIFICATIONS

Max. Platform size : (LxW) 600 x 600 /900/900

Lowered platform height : 630 mm

Max. Raised height : Upto 4500 mm

Controls : DC / Push Buttons

FEATURES

Compact and useful equipment for order picking.

1.In-built battery charger

2.Swivel wheel for easy maneuverability

3.Robust chassis

4.Battery indicator

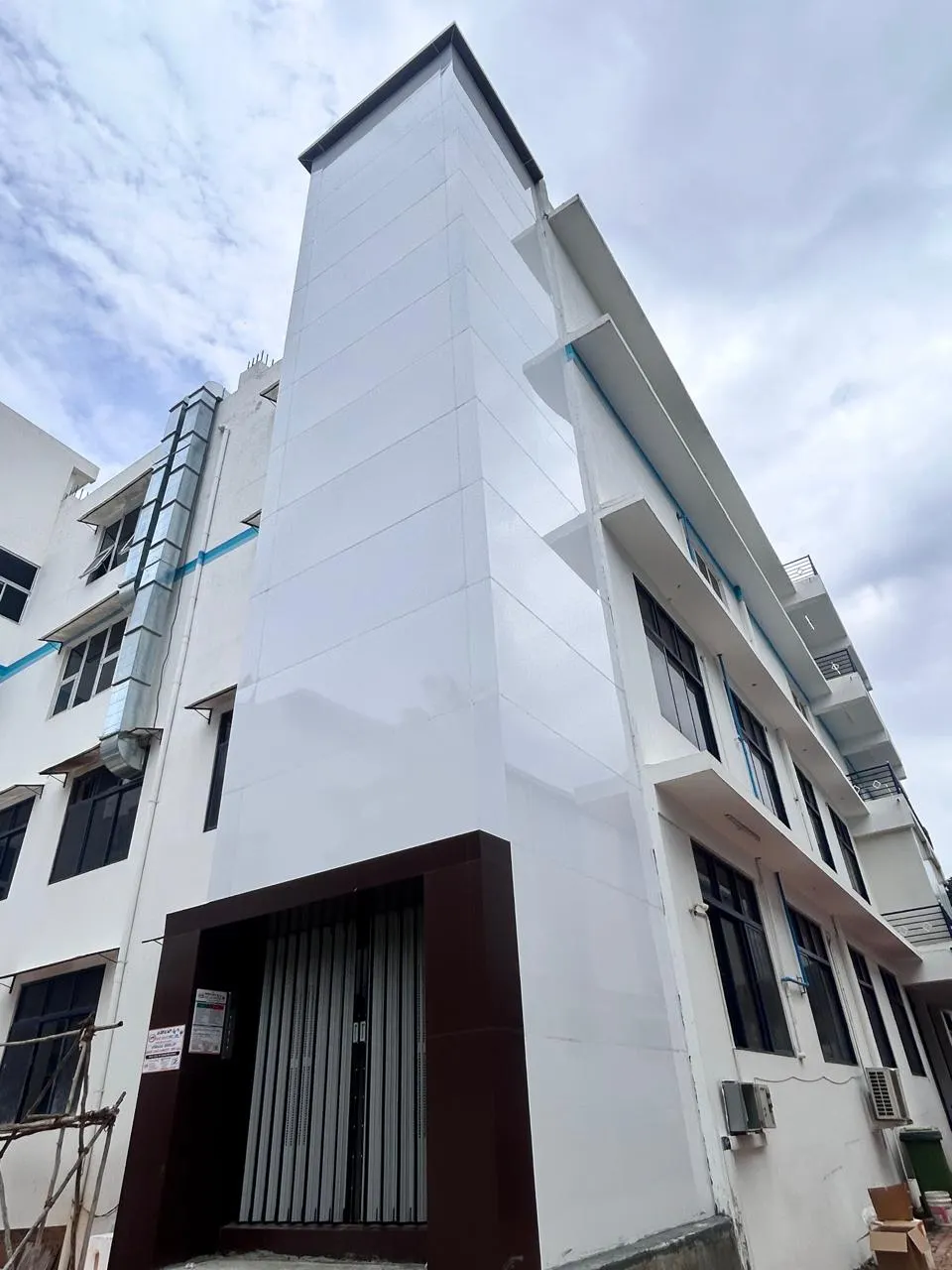

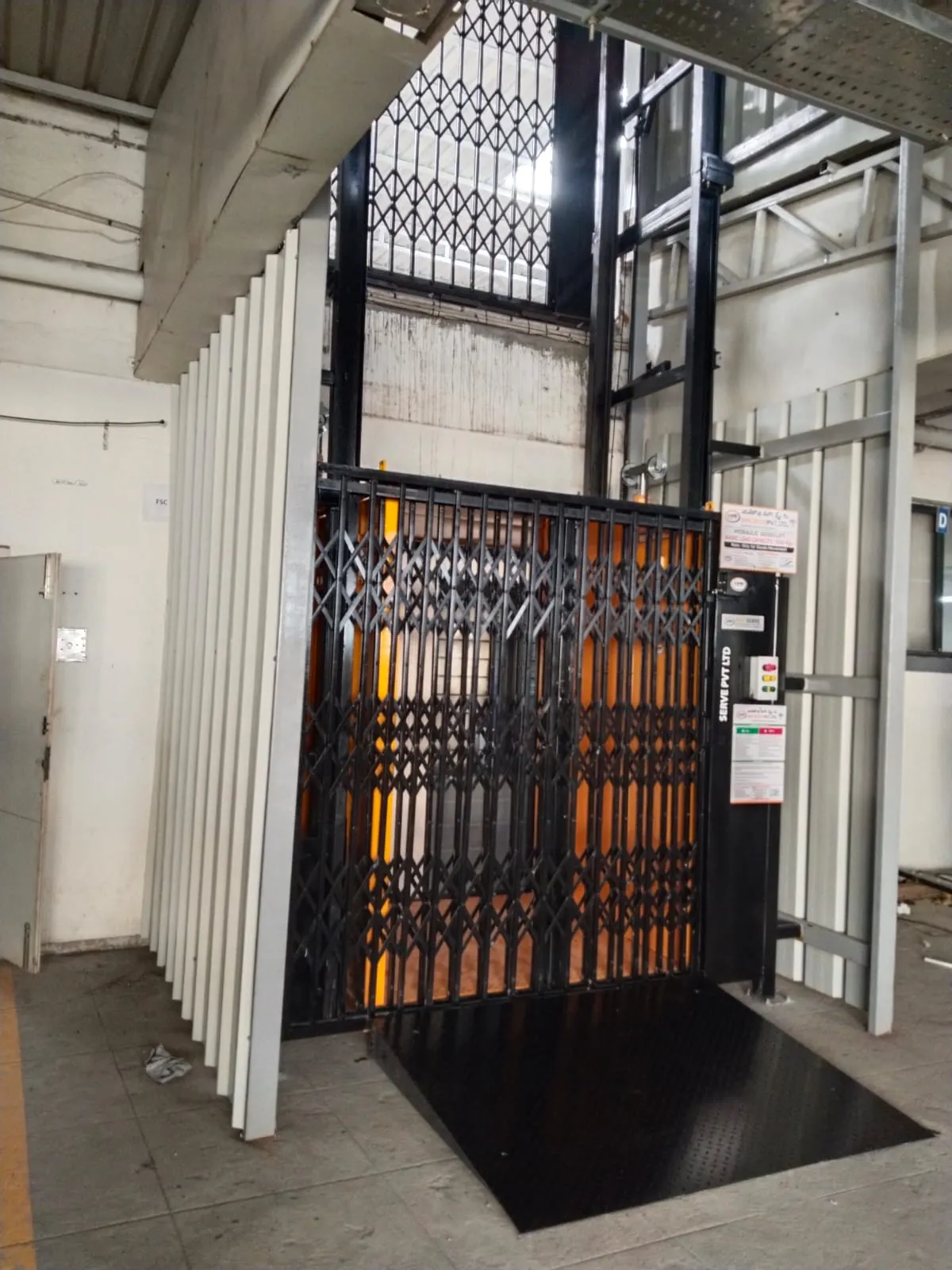

GOODS LIFTS - HYDRAULIC & HOIST TYPE

Goods Lift: Enhancing Efficiency In Safety & Vertical Transportation Introduction In industrial settings, the efficient movement of goods and materials is vital to ensure smooth operations and minimize downtime. Goods lifts play a pivotal role in material handling, offering a reliable and versatile solution for lifting and transporting heavy loads. Understanding Goods Lifts Hydraulic goods lift is a mechanical device designed to vertically transport heavy goods or materials between different levels of a building or facility. It operates on the principle of hydraulic power, utilizing fluid pressure to generate the necessary force for lifting and lowering loads. Hydraulic goods lifts are commonly used in warehouses, manufacturing plants, distribution centers, and other industrial environments where the efficient movement of goods is paramount.

FEATURES

1.Enclosed Cabin

2.Cabin Safety Gates Collapsible

3.Floor Gates Collapsible IFD / Buff / SS Auto Doors

4.Schmersal advanced Locking system for Floor gates

5.Enclosed with mesh (if Inside the Building)

6.Enclosed with GC sheet (if Out side Building)

7.Enclosed with ACP sheet (if out side or inside Building)

8.PLC panels

9.Pendent Controls Out side Lift

10.FLP Goods Lift

11.SS Goods Lift

12.Weighing Scale attachment

SUPERIOR VALUE, INCREASED UPTIME

“MHE SERVE " provides Scissor Lift Table - Mobile which are ideal and most innovative material handling equipment, for loading / unloading dies, boxes etc. from the machines or at height. It is also used for loading/unloading from small trucks or tempos and shifting. Since it is light weight it is easy to manouver. It comes with the parking brakes for easy loading of materials. Designed suited for weighted application upto 1000 kgs & lift ht upto 1600mm. Manual / Semi operated hydraulic lift pump raises the platform to any height within the lift range to reduce risk of injury from lifting and bending.

FEATURES

1.The lift tables can also be used as worktables in the production facilities to save labour, eliminate injury and increase efficiency & productivity.

2.These lift tables are versatile equipments to bridge the height difference for efficient and safe goods movement.

FLOOR CRANE (Movable Series): Lifting and shifting purpose of heavier materials

“MHE SERVE " provides Scissor Lift Table - Mobile which are ideal and most innovative material handling equipment, for loading / unloading dies, boxes etc. from the machines or at height. It is also used for loading/unloading from small trucks or tempos and shifting. Since it is light weight it is easy to manouver. It comes with the parking brakes for easy loading of materials. Designed suited for weighted application upto 1000 kgs & lift ht upto 1600mm. Manual / Semi operated hydraulic lift pump raises the platform to any height within the lift range to reduce risk of injury from lifting and bending.

SPECIFICATIONS

1.Load capacity : Up to 1000 Kgs

2.Raised height : Upto 3000 mm

3.Boom length : Customized

4.Operation : Manual /AC/DC

5.Straddle l/w :  Customized
